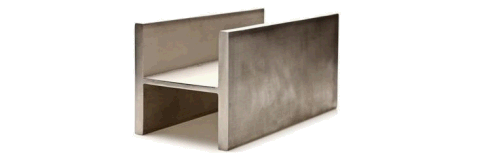

Mere, masa, statične vrednosti - prema DIN 1025

Toplotno obrađeni, luženi

Dužina šipki: oko. 6 m

Sertifikat: EN 10204/3.1



Kvalitet: 1.4301/1.4571



OZNAKA:

DIMENZIJA

(mm):

TEŽINA

(kg/m):



b x h x t x s



HEB 100

100 x 100 x 6,0 x 10,0

20,40

HEB 120

120 x 120 x 6,5 x 11,0

26,70

HEB 140

140 x 140 x 7,0 x 12,0

33,70

HEB 160

160 x 160 x 8,0 x 13,0

42,60

HEB 180

180 x 180 x 8,5 x 15,0

51,20

HEB 200

200 x 200 x 9,0 x 15,0

61,30

HEB 220

220 x 220 x 9,5 x 16,0

71,50

HEB 240

240 x 240 x 10,0 x 17,0

83,20

HEB 260

260 x 260 x 10,0 x 17,5

93,00

HEB 280

280 x 280 x 10,5 x 18,0

103,00

HEB 300

300 x 300 x 11,0 x 19,0

117,00



OZNAKA:

DIMENZIJA

(mm):

TEŽINA

(kg/m):



b x h x t x s



HEA 100

96 x 100 x 5,0 x 8,0

16,70

HEA 120

114 x 120 x 5,0 x 8,0

19,90

HEA 140

133 x 140 x 5,5 x 8,5

24,70

HEA 160

152 x 160 x 6,0 x 9,0

30,40

HEA 180

171 x 180 x 6,0 x 9,5

35,50

HEA 200

190 x 200 x 6,5 x 10,0

42,30

HEA 220

210 x 220 x 7,0 x 10,0

48,60

HEA 240

230 x 240 x 7,5 x 12,0

58,50

HEA 260

250 x 260 x 7,5 x 12,5

63,60

HEA 280

270 x 280 x 8,0 x 13,0

16,70

HEA 300

290 x 300 x 8,5 x 13,5

19,90
